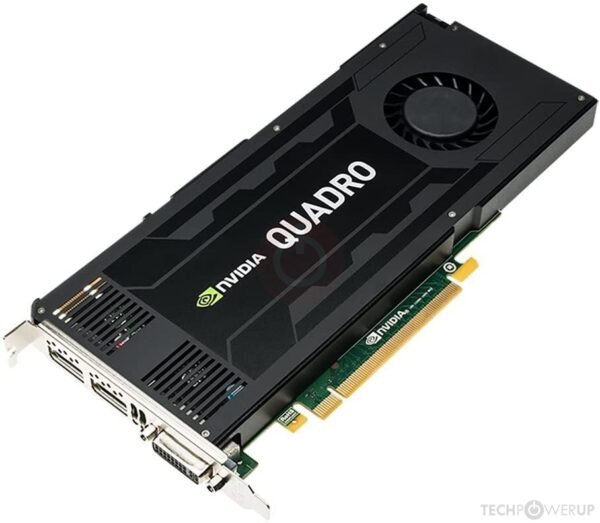

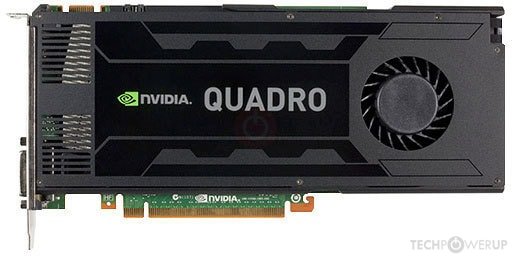

VIDIA Quadro K4200 4 GB GDDR5 256BIT

Key Features & Highlights

• Memory & Interface: 4 GB GDDR5, 256-bit interface, delivering high throughput for large models and complex scenes

• CUDA Cores: 1,344 (parallel compute cores) for GPU-accelerated tasks

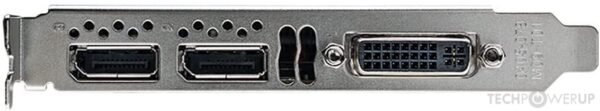

• Display Support: Up to 4 displays via DisplayPort 1.2, with support for ultra-high resolutions (e.g. 3840 × 2160 @ 60 Hz)

• Power & Cooling: Typical board power ~108 W

• Bus / Interface: PCI Express 2.0 x16

• Professional Grade: Certified drivers and optimizations for leading workstation software (CAD, 3D, rendering)

Strengths & Use-Case Suitability

• Handles moderate to large 3D models and assemblies in CAD / mechanical design

• Well suited to GPU-accelerated rendering, simulation tasks, and compute workloads

• Supports multi-monitor setups for visualizations, control rooms, and large canvas workspaces

• More memory headroom (4 GB) than older 3 GB-class workstation GPUs

Limitations / Considerations

• 4 GB VRAM is solid, but may be challenged by extremely large textures or ultra-high resolution scenes

• Although GPU compute and CAD workloads benefit, this is not primarily designed for gaming or consumer GPU benchmarks

• Must be installed in a system with a stable power supply and adequate cooling

• Uses PCIe 2.0 — in PCIe 3.0 or 4.0 systems, it will operate in compatibility mode
