ZOTAC G-FORCE GTX 1060 6 GB GDDR5 192 bit
Key Specifications:
| Specification | Detail |
|---|---|

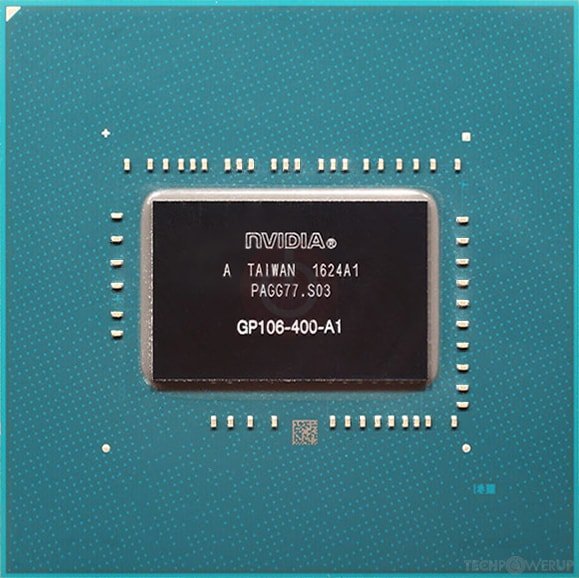

| GPU / Architecture | NVIDIA Pascal (GP106) |
| CUDA Cores | 1,280 |
| Memory Size & Type | 6 GB GDDR5 (or GDDR5X in some variants) |
| Memory Bus Width | 192-bit |
| Base Clock | ~ 1506 MHz (reference version) |
| Boost Clock | ~ 1708-1771 MHz (factory overclocked versions higher) |
| Memory Clock / Bandwidth | Effective ~ 8 Gbps; bandwidth ~ 192 GB/s |
| Interface | PCI Express 3.0 x16 |
| Display Outputs | Typically 3 × DisplayPort 1.4, 1 × HDMI 2.0b, plus Dual-Link DVI (depends on exact variant) |
| Power Consumption | ~ 120 W TDP |
| Power Connector | 6-pin in many versions; some higher overclocked may have 8-pin or adapter options |
| Recommended System PSU | ~ 400-500 W depending on rest of system |
| Cooling / Form Factor | Dual-slot, dual-fan or amp / overclocked versions; some “Mini” / compact boards exist |
Key Specifications:
| Specification | Detail |
|---|---|
| GPU / Architecture | NVIDIA Pascal (GP106) |
| CUDA Cores | 1,280 |
| Memory Size & Type | 6 GB GDDR5 (or GDDR5X in some variants) |
| Memory Bus Width | 192-bit |
| Base Clock | ~ 1506 MHz (reference version) |
| Boost Clock | ~ 1708-1771 MHz (factory overclocked versions higher) |
| Memory Clock / Bandwidth | Effective ~ 8 Gbps; bandwidth ~ 192 GB/s |
| Interface | PCI Express 3.0 x16 |
| Display Outputs | Typically 3 × DisplayPort 1.4, 1 × HDMI 2.0b, plus Dual-Link DVI (depends on exact variant) |
| Power Consumption | ~ 120 W TDP |
| Power Connector | 6-pin in many versions; some higher overclocked may have 8-pin or adapter options |
| Recommended System PSU | ~ 400-500 W depending on rest of system |
| Cooling / Form Factor | Dual-slot, dual-fan or amp / overclocked versions; some “Mini” / compact boards exist |
Highlighted Strengths / Use-Cases:
-
Great for 1080p gaming at high to ultra settings in most modern titles.
-
Decent performance in 1440p gaming if you adjust settings a bit (medium-high).
-
Efficient performance per watt thanks to Pascal architecture.
-
Capable for VR (“VR Ready”) and GPU-accelerated tasks like video editing.
-
Good multi-monitor support; solid choice for power users who want performance without going to top-end GPUs.
Limitations / Considerations:
-
6 GB of VRAM may be limiting for very high-resolution texture packs, future games, or 4K gaming.
-
Without careful cooling / airflow, overclocked or compact versions may run hot under load.
-
Not the newest generation — lacks hardware ray-tracing, tensor cores, etc.
-
As cards age, driver / support for very new features may lag behind newer architectures.
