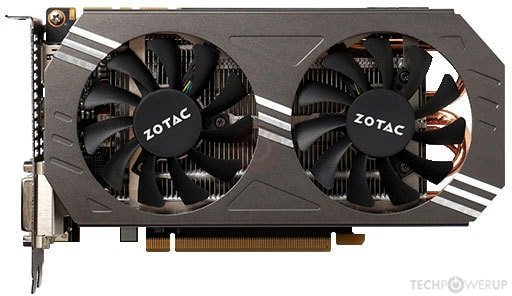

ZOTAC GTX 970 4 GB GDDR5 256 bit
Specifications:
| Feature | Detail |
|---|---|
| GPU Architecture | NVIDIA Maxwell (GM204) |
| CUDA Cores / Shading Units | 1,664 cores |
| Memory | 4 GB GDDR5 |
| Memory Interface / Bus Width | 256-bit |
| Memory Clock | 7,010 MHz effective (1752.5 MHz actual × 4) |
| Base / Boost Core Clock | Base ≈ 1,076 MHz, Boost ≈ 1,216 MHz |
| Power Consumption / TDP | Up to ~ 145 W |
| Required Power Connectors | 2 × 6-pin PCIe power connectors |
| Recommended PSU | 500 W or higher system PSU |
| Display Outputs (Typical) | 2 × DL-DVI, 1 × HDMI 2.0, 1 × DisplayPort (4K @ 60 Hz) |
| Max Resolution | 4K (3840 × 2160) @ 60 Hz over HDMI / DisplayPort |
| Slot / Cooling / Size | Dual-slot, dual fan (ZOTAC “Dual Fan” / variants) |
Specifications:
| Feature | Detail |
|---|---|
| GPU Architecture | NVIDIA Maxwell (GM204) |
| CUDA Cores / Shading Units | 1,664 cores |
| Memory | 4 GB GDDR5 |
| Memory Interface / Bus Width | 256-bit |
| Memory Clock | 7,010 MHz effective (1752.5 MHz actual × 4) |
| Base / Boost Core Clock | Base ≈ 1,076 MHz, Boost ≈ 1,216 MHz |
| Power Consumption / TDP | Up to ~ 145 W |
| Required Power Connectors | 2 × 6-pin PCIe power connectors |
| Recommended PSU | 500 W or higher system PSU |
| Display Outputs (Typical) | 2 × DL-DVI, 1 × HDMI 2.0, 1 × DisplayPort (4K @ 60 Hz) |
| Max Resolution | 4K (3840 × 2160) @ 60 Hz over HDMI / DisplayPort |
| Slot / Cooling / Size | Dual-slot, dual fan (ZOTAC “Dual Fan” / variants) |
🔍 Strengths & Practical Use
-
Still quite capable for 1080p gaming, especially in older or moderately demanding titles.
-
Good for eSports titles (CS:GO, Dota 2, Valorant) with smooth performance at high settings.
-
Supports multi-display setups and decent resolutions (4K @ 60 Hz for non-gaming / desktop).
-
Has features like GPU Boost, DSR (Dynamic Super Resolution), MFAA, etc.
⚠️ Limitations / Things to Be Aware Of
-
Although marketed as 4 GB, the GTX 970 memory is segmented: 3.5 GB high-speed memory + 0.5 GB lower bandwidth.
-
The last 512 MB section has reduced performance, which can lead to stutters or performance drops if the card is pushed beyond its faster memory limit.
-
Modern AAA games and high texture / high resolution settings may exceed its comfortable limits.
-
Power / cooling requirements are nontrivial for older / budget systems.
-
Lack of newer features (ray tracing, DLSS, newer codecs) as found in modern GPU generations.
